Aluminum ZLP800 suspeneded platform for construction building facade cleaning

Place of Origin : China

Brand Name : Suspended Platform

Certification : CE,ISO

Model Number : ZLP630

MOQ : 1 sets

Price : USD2100

Delivery Time : 5-7 days

Payment Terms : TT,LC

Warranty : one year for suspended platform, 6 years for gear of hoist

Suspended platform : Hot galvanized steel

Platform size : 6000*690*1180

Lifting speed : ~9.5m/min

Hoist : LTD63

Motor : 1.5kw*2

Safety lock : LS30

Wire rope : 8.3mm

Counter weight : 1000kgs

Contact Now

Aluminum ZLP800 suspeneded platform for construction building facade cleaning

Email: anicali@hrgondola.com

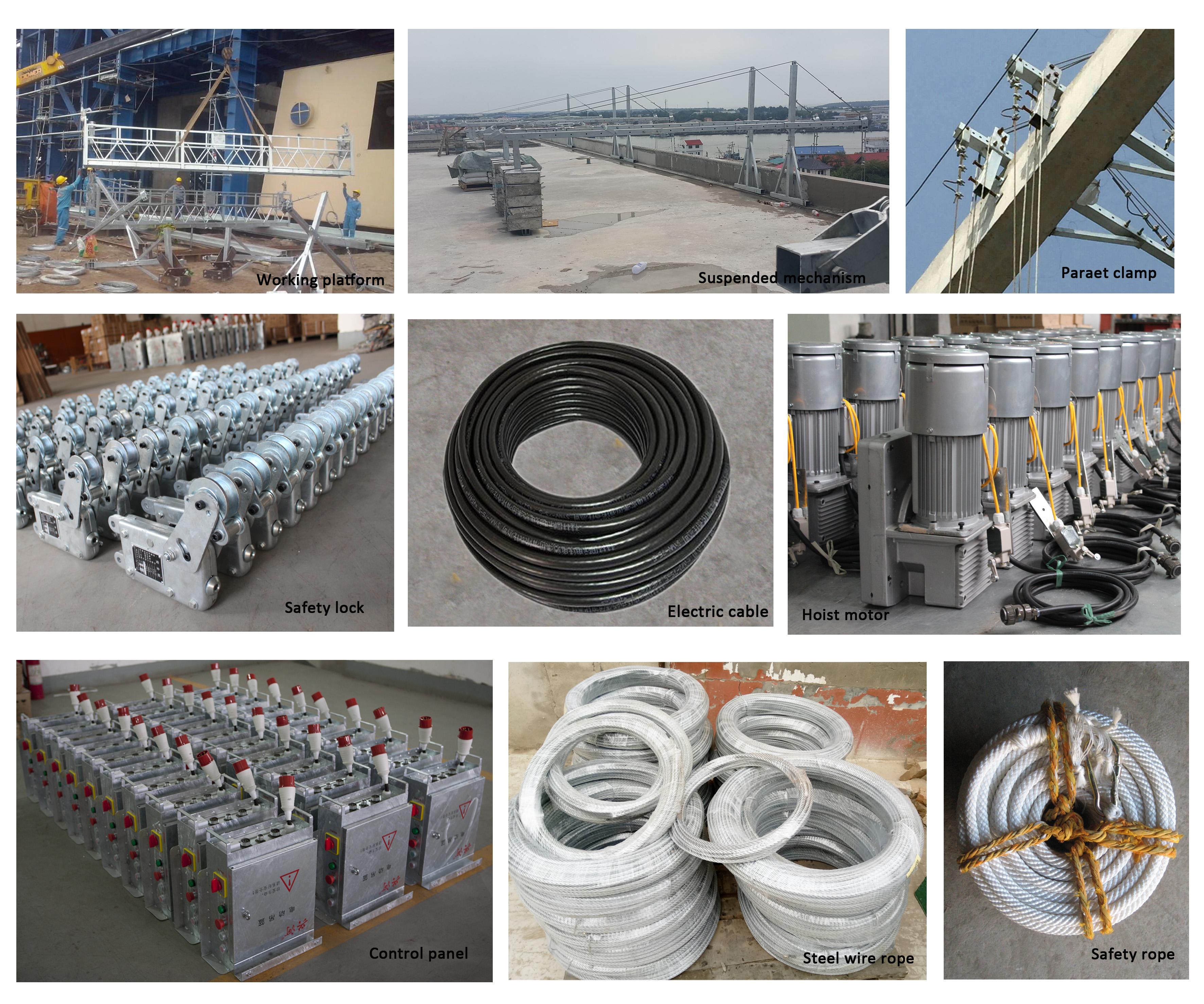

Suspended platforms are designed and constructed in modular form so it can be mounted
in any size from 2-8 meters.
The connection of the individual parts of the structure in each unit is made with nuts and
bolts.
The platform is equipped with wheels for easy movement around the construction site.
The working platform as bolt type and pin type.

Aluminum ZLP800 suspeneded platform for construction building facade cleaning

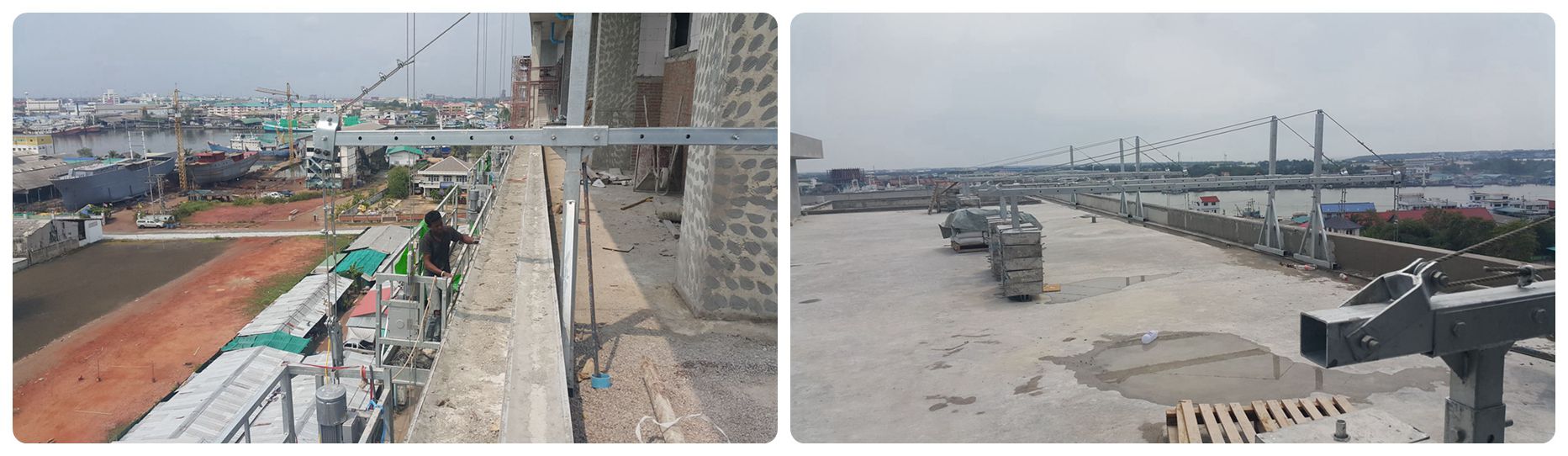

Suspension mechanism of suspended platform
With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube,
thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm,
thickness of working platform is 2.2mm.
Aluminum ZLP800 suspeneded platform for construction building facade cleaning

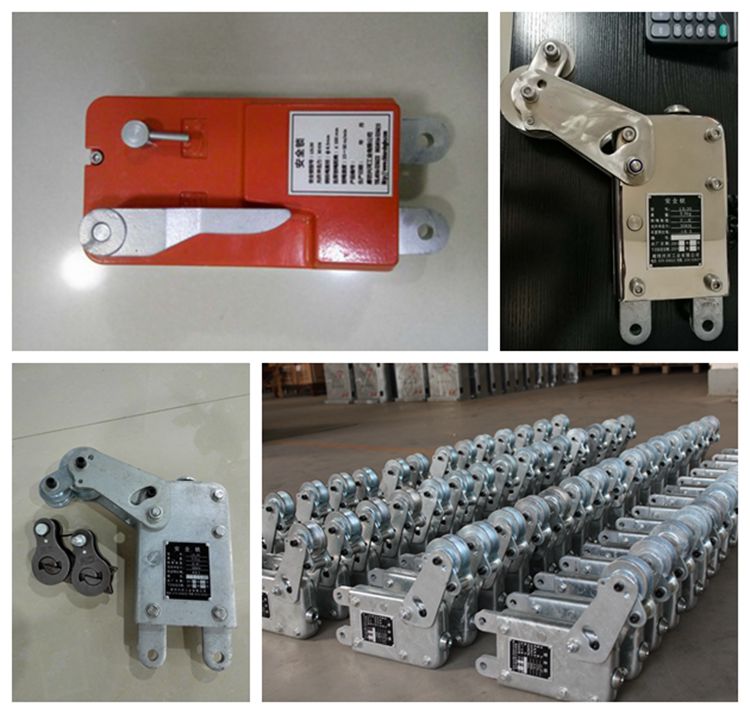

Safety lock of suspended platform

The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness,
wear resistant, long services life,safe and reliable.

Electric control box
The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.

Specification of suspended platform

Item			ZLP630	ZLP800
Rated load			630kg	800kg
Lifting speed			~9.5m/min	~8.5m/min
Platform size (length×width×height)			(20003)690*1180mm	(25003)690*1180mm
Suspension mechanism	Front beam extension		1.1m-1.5m
	Height adjustment		1.45m-1.75m
Hoist	Type		LTD63	LTD80
	Motor	Type	Customization	Customization
		Power	1.5KW	2.0KW
		Voltage	380V	380V
		Speed	1400n/min	1400n/min
		Braking torque	15N·m	15N·m
Safety lock	Type		LS30
	Angle of tilted locking rope		3°—8°
	Allowable impact force		30kN
Weight	Working platform		300kg	370kg
	Hoist		52kg×2	56kg×2
	Safety lock		5.5kg×2	5.5kg×2
	Suspension mechanism		320kg	320kg
