Philippines external cleaning hoist temporary suspended platform gondola

Place of Origin : China

Certification : CE,ISO

Model Number : ZLP800

MOQ : 1 sets

Price : USD2100

Delivery Time : 5-7 days

Payment Terms : TT,LC

Warranty : one year for suspended platform, 6 years for gear of hoist

Suspended platform : Hot galvanized steel

Platform size : 7500*690*1180

Lifting speed : ~8.5m/min

Hoist : LTD80

Motor : 2.0kw*2

Safety lock : LS30

Wire rope : 8.3mm

Counter weight : 1000kgs

Contact Now

Philippines external cleaning hoist temporary suspended platform gondola

Email: anicali@hrgondola.com

Suspended platforms are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
The connection of the individual parts of the structure in each unit is made with nuts and bolts.
The platform is equipped with wheels for easy movement around the construction site.
The working platform as bolt type and pin type.

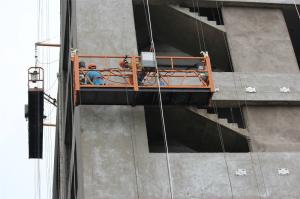

Suspended platform in the world
Philippines external cleaning hoist temporary suspended platform gondola

Specification of suspended platform

Item			ZLP630	ZLP800
Rated load			630kg	800kg
Lifting speed			~9.5m/min	~8.5m/min
Platform size (length×width×height)			(20003)690*1180mm	(25003)690*1180mm
Suspension mechanism	Front beam extension		1.1m-1.5m
	Height adjustment		1.45m-1.75m
Hoist	Type		LTD63	LTD80
	Motor	Type	Customization	Customization
		Power	1.5KW	2.0KW
		Voltage	380V	380V
		Speed	1400n/min	1400n/min
		Braking torque	15N·m	15N·m
Safety lock	Type		LS30
	Angle of tilted locking rope		3°—8°
	Allowable impact force		30kN
Weight	Working platform		300kg	370kg
	Hoist		52kg×2	56kg×2
	Safety lock		5.5kg×2	5.5kg×2
	Suspension mechanism		320kg	320kg
	Electricity box		18kg	18kg
	Total weight		812kg	872kg
	Counter weight		1000kg (25×40pieces)	1000kg (25×40pieces)
Wire rope	Type		4×31SW+FC-ф8.3	4×31SW+FC-ф8.3
Cable	Type		3×2.5+2×1.5YC-5 (one piece)

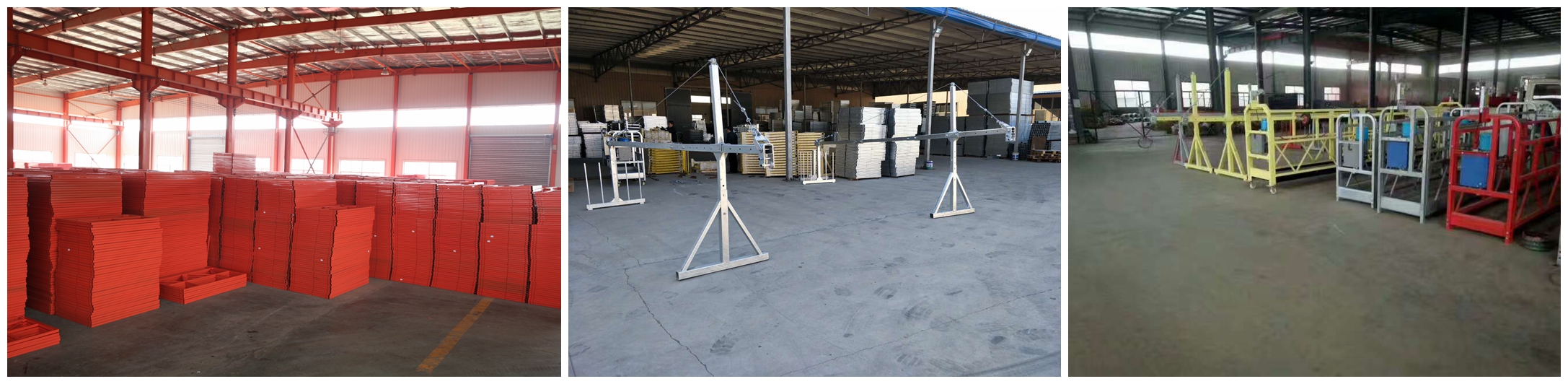

Production of suspended platform
Philippines external cleaning hoist temporary suspended platform gondola

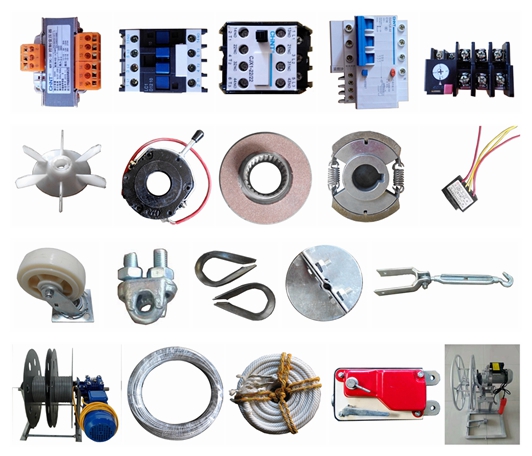

Large spare parts of suspended platform on stock
